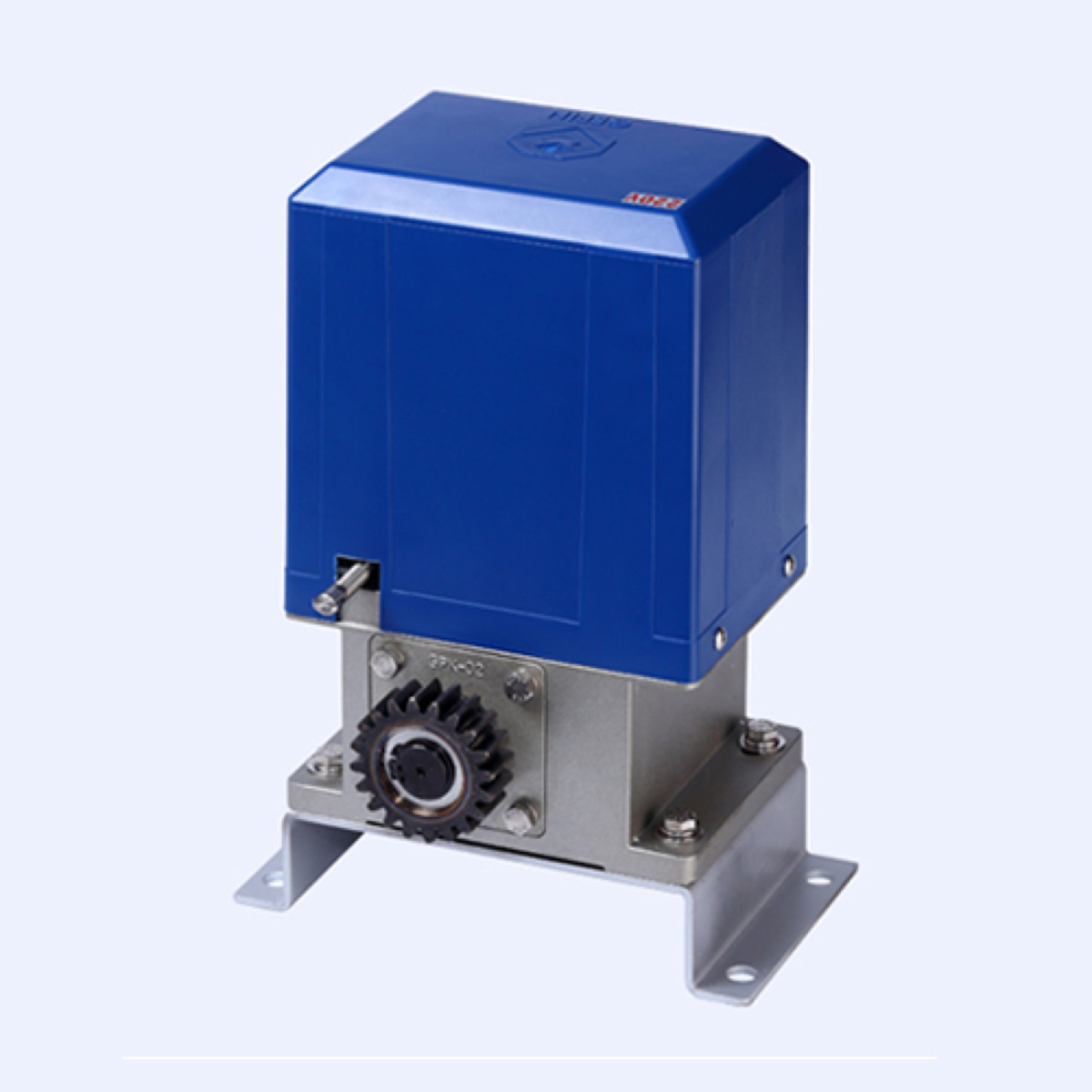

GPD1500 Heavy-duty Gate Operator

GPD1500 Heavy-duty Gate Operator

Mainstay for large communities and parking

Applications: Large communities & parking

Best for: Gate contractors & developers

  • Fully oil-immersed worm gearbox with sealed no-leak design
  • Patented dual-in-one limit switch — fully weatherproof
  • Patented manual clutch — operate by hand during power outages
  • Short brake coast distance for precise positioning
  • Optional VFD for soft-start
  • Start protection
Spec inquiry Distributors

Specifications

Power supply220V single-/three-phase
Power0.55kW
Max load1500kg
Max gate width10m
Travel speed8.5 m/min
Unit weight21kg
Upgrade: add a VFD to unlock high-frequency capability

GPD1500 can use a single- or three-phase motor based on site power. If your site needs many daily cycles, we recommend adding a VFDwith a three-phase motor for three upgrade benefits:

  • Soft-start / soft-stop — sharply cuts inrush, reduces gearbox wear, and extends service life
  • Three-phase motor heat tolerance — even coil temperature rise; resists overheating in continuous high-frequency use
  • Flexible speed control — set open/close speed for the driveway and safety needs

The VFD itself can takesingle- or three-phase input, independent of site power type.

Ask about VFD packages: 04-2422-6333｜→ See FAQ
