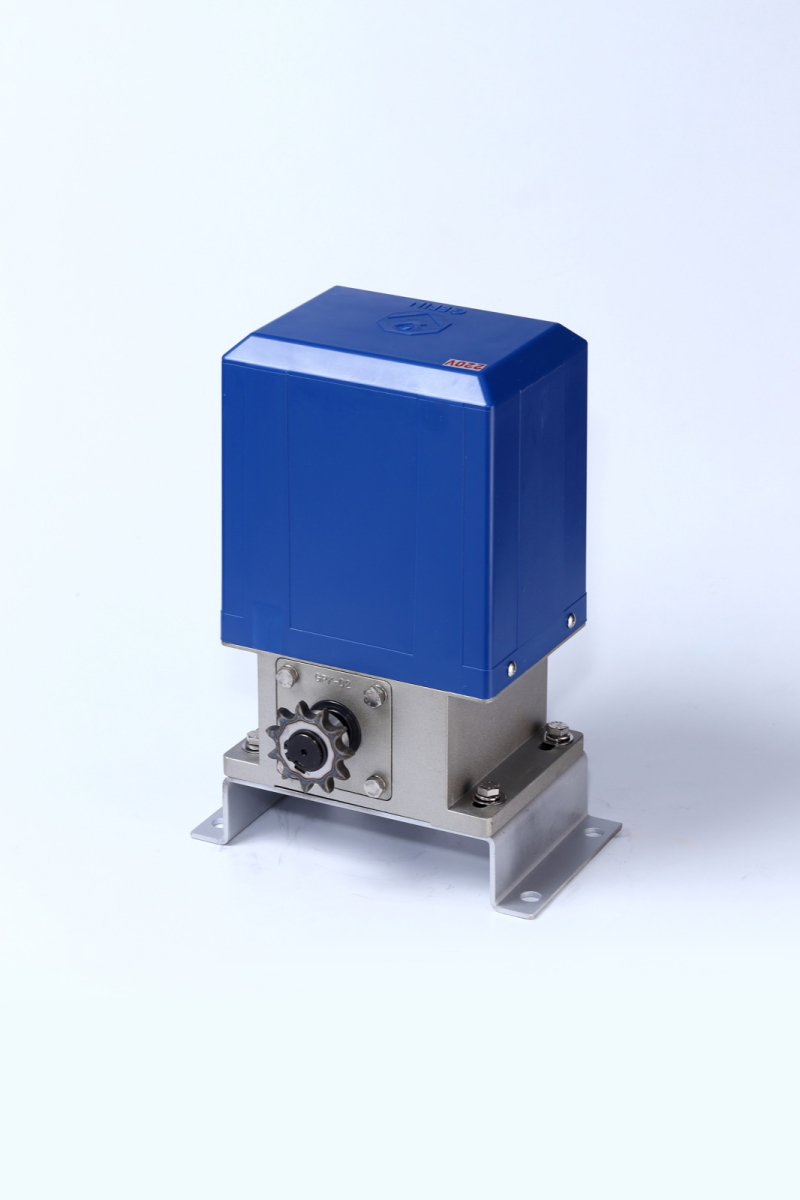

GPK-500 Sliding Gate Operator
GPK-500 product photoGPK-500 product photo

GPK-500 Sliding Gate Operator

Classic choice for residential community gates — light 13 kg

Applications: Residential communities, small factories, villa gates

Best for: Gate contractors, community management

  • Fully oil-immersed worm gearbox with sealed no-leak design
  • Patented dual-in-one limit switch — fully weatherproof
  • Patented manual clutch — operate by hand during power outages
  • Short brake coast distance for precise positioning
  • Built-in heatsink and thermal protection
  • Optional anti-theft lock

Specifications

Power supply110V/220V
Power0.25kW
Max load500kg
Max gate width8m
Travel speed9.7 m/min
Unit weight13kg

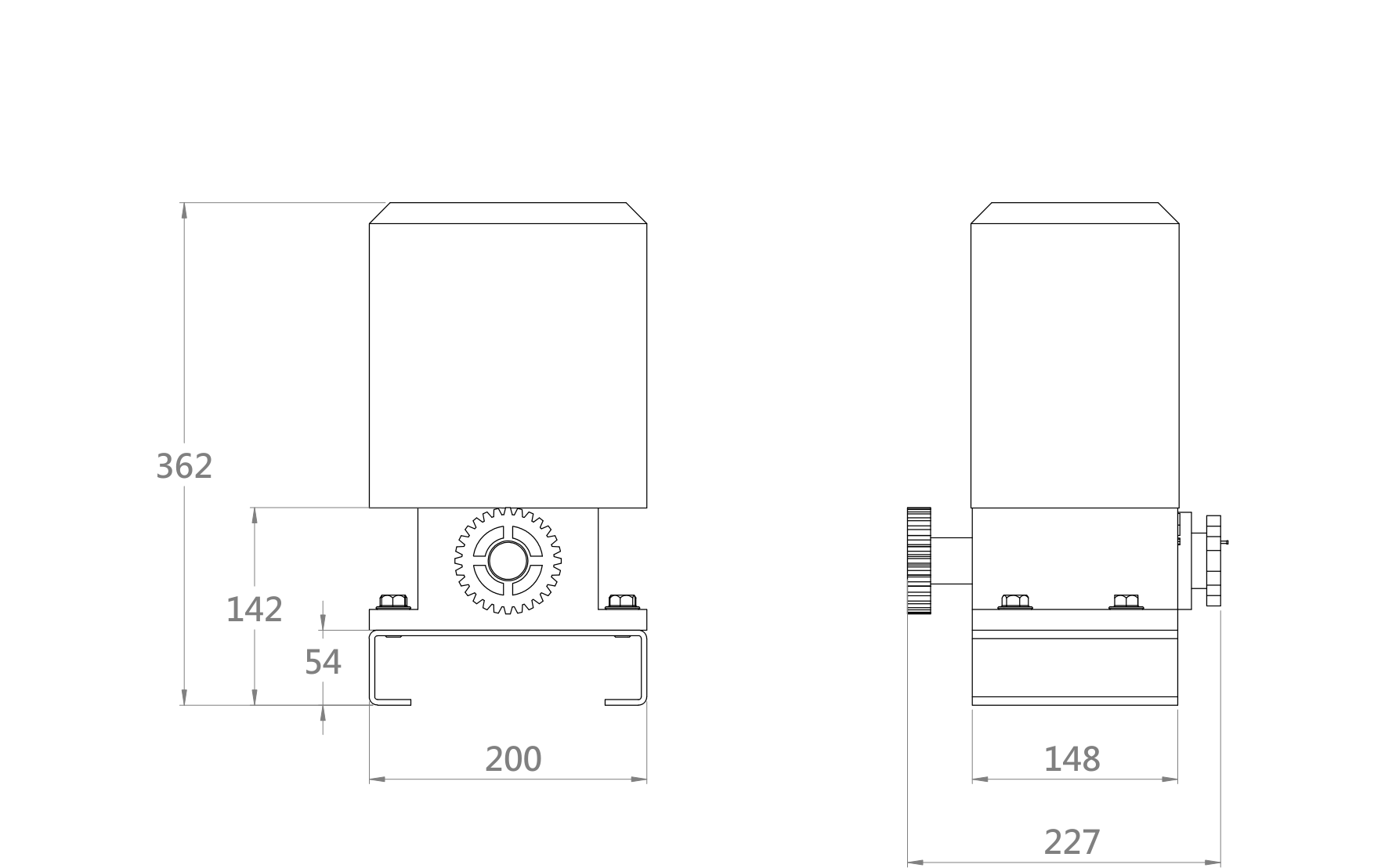

Dimensional drawings

Dimension drawing
