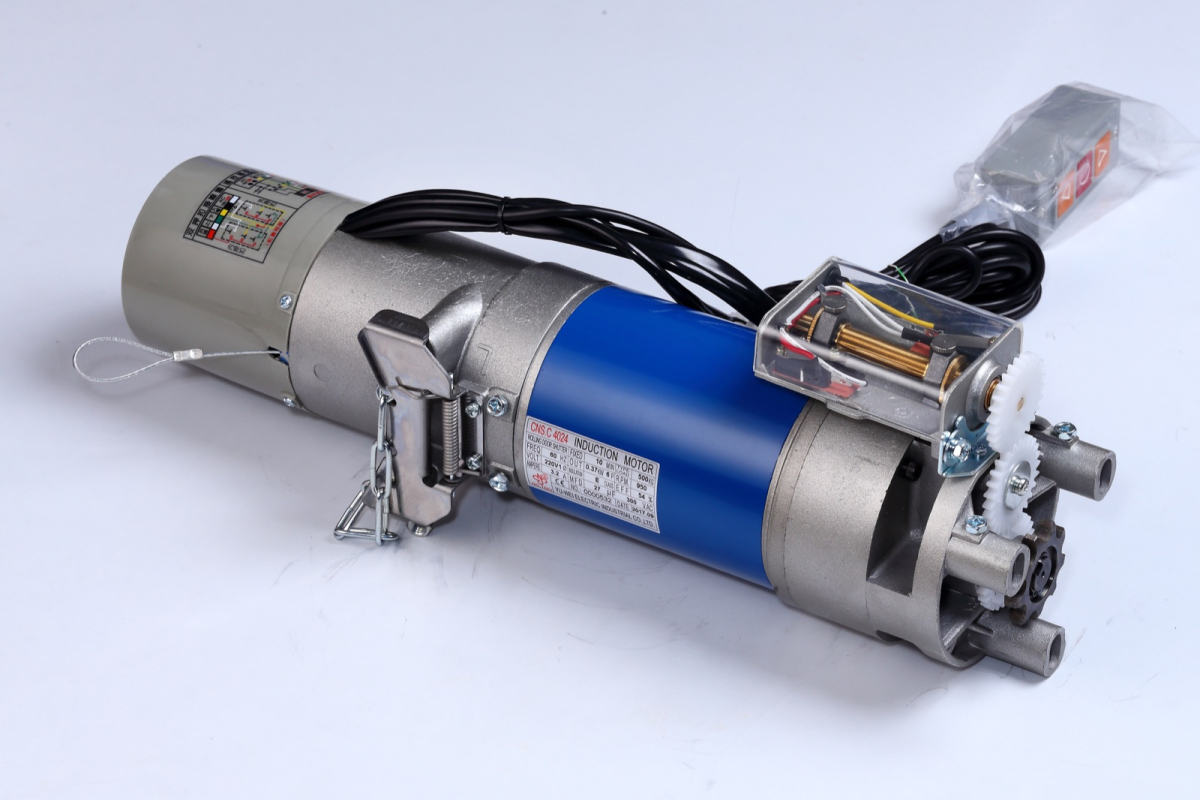

GP500 Shutter Motor
GP500 product photoGP500 product photoGP500 product photoGP500 product photo

GP500 Shutter Motor

Mainstay for medium–large shops and warehouses

Applications: Medium–large shops, warehouses, factory entries

Best for: Shutter installers & warehouse owners

  • Run-capacitor motor design — shutter never freewheels in reverse
  • Among the smallest and lightest in class — easy to install
  • Light pull on the drop rod for smooth automatic descent
  • Auto-stop above 130°C; resumes at 70°C

Specifications

Power supply110V/220V
Power0.37kW
Max load500kg
Unit weight15kg
Not sure which model fits? See Complete Shutter Motor Buying Guide

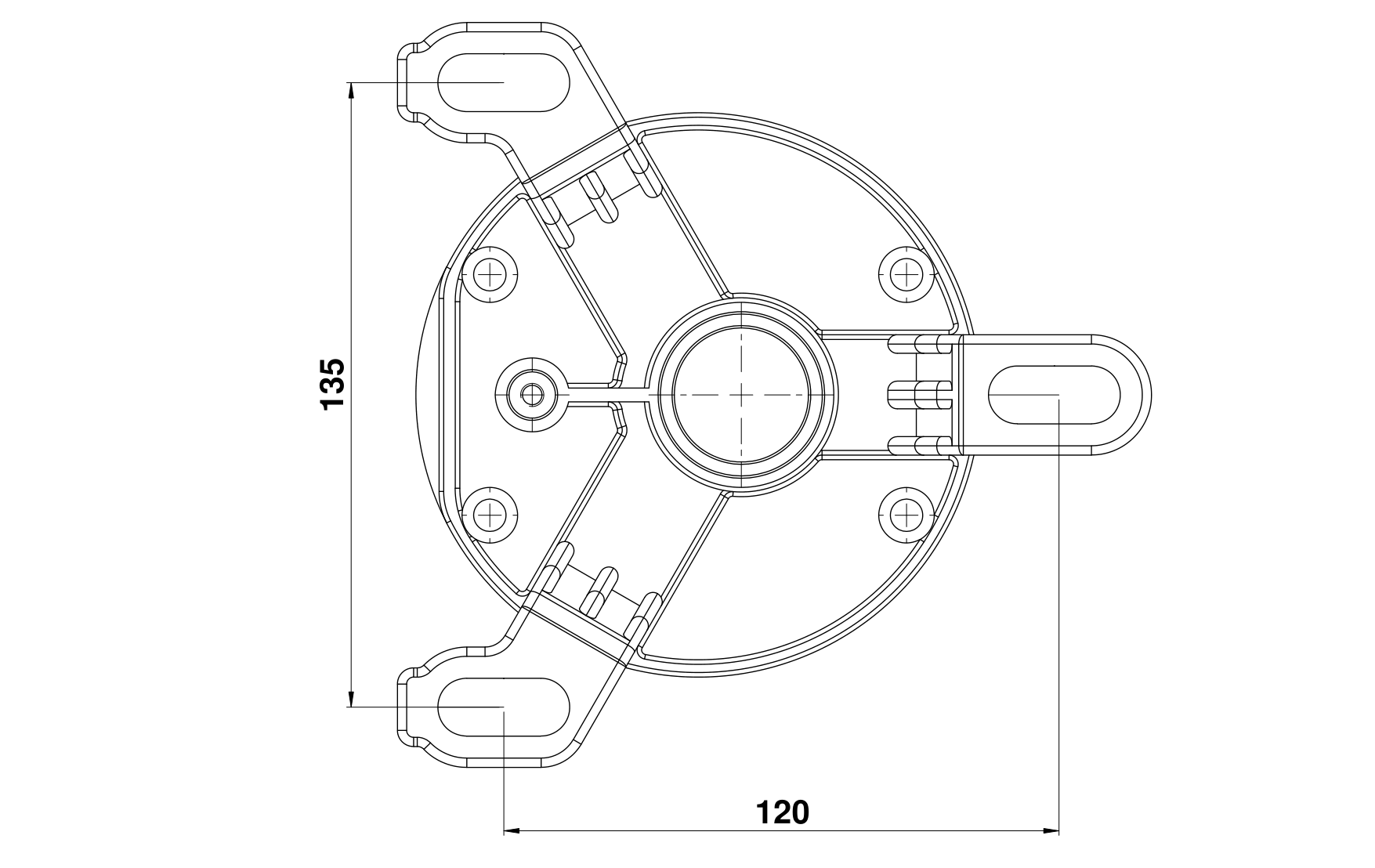

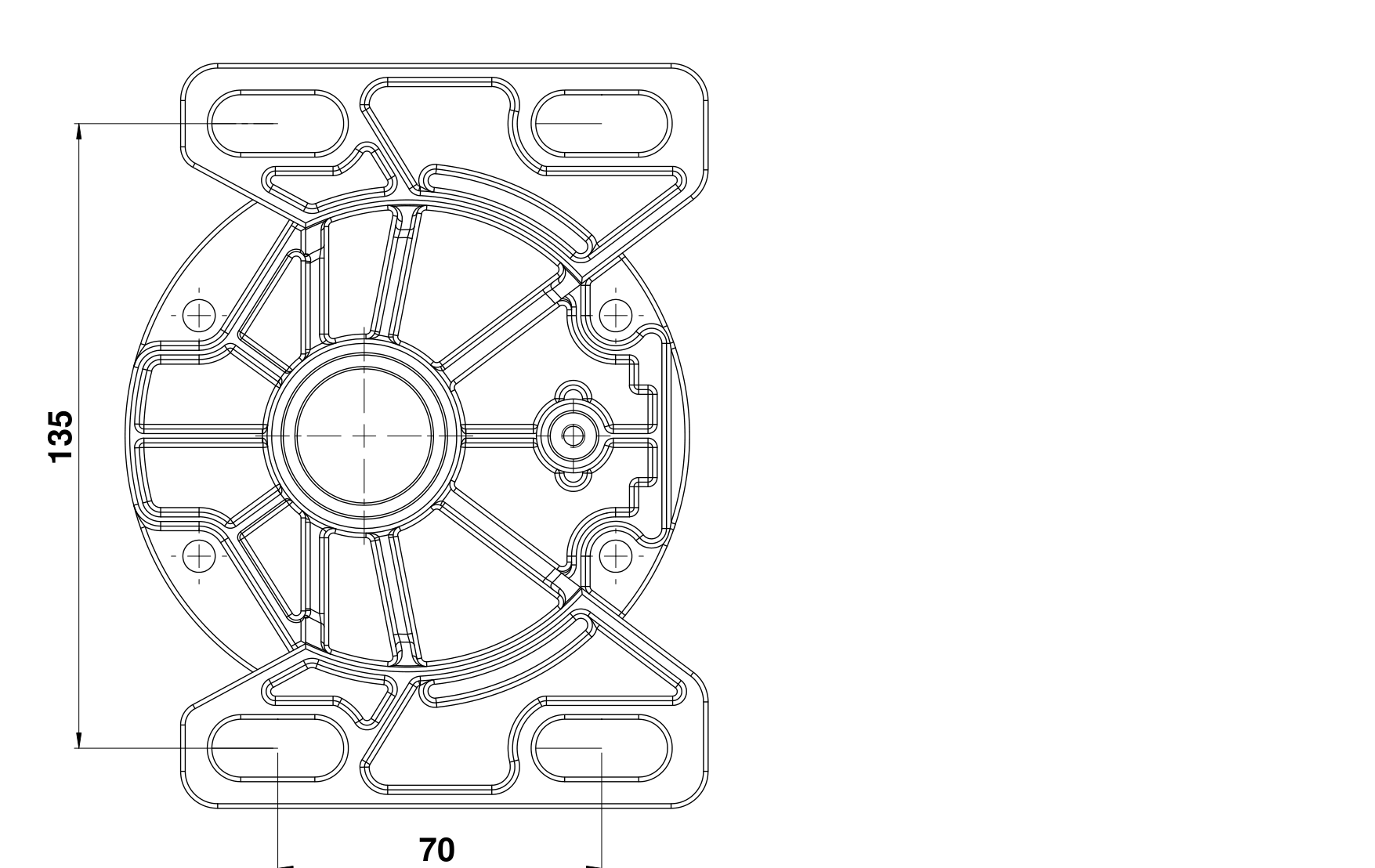

Dimensional drawings

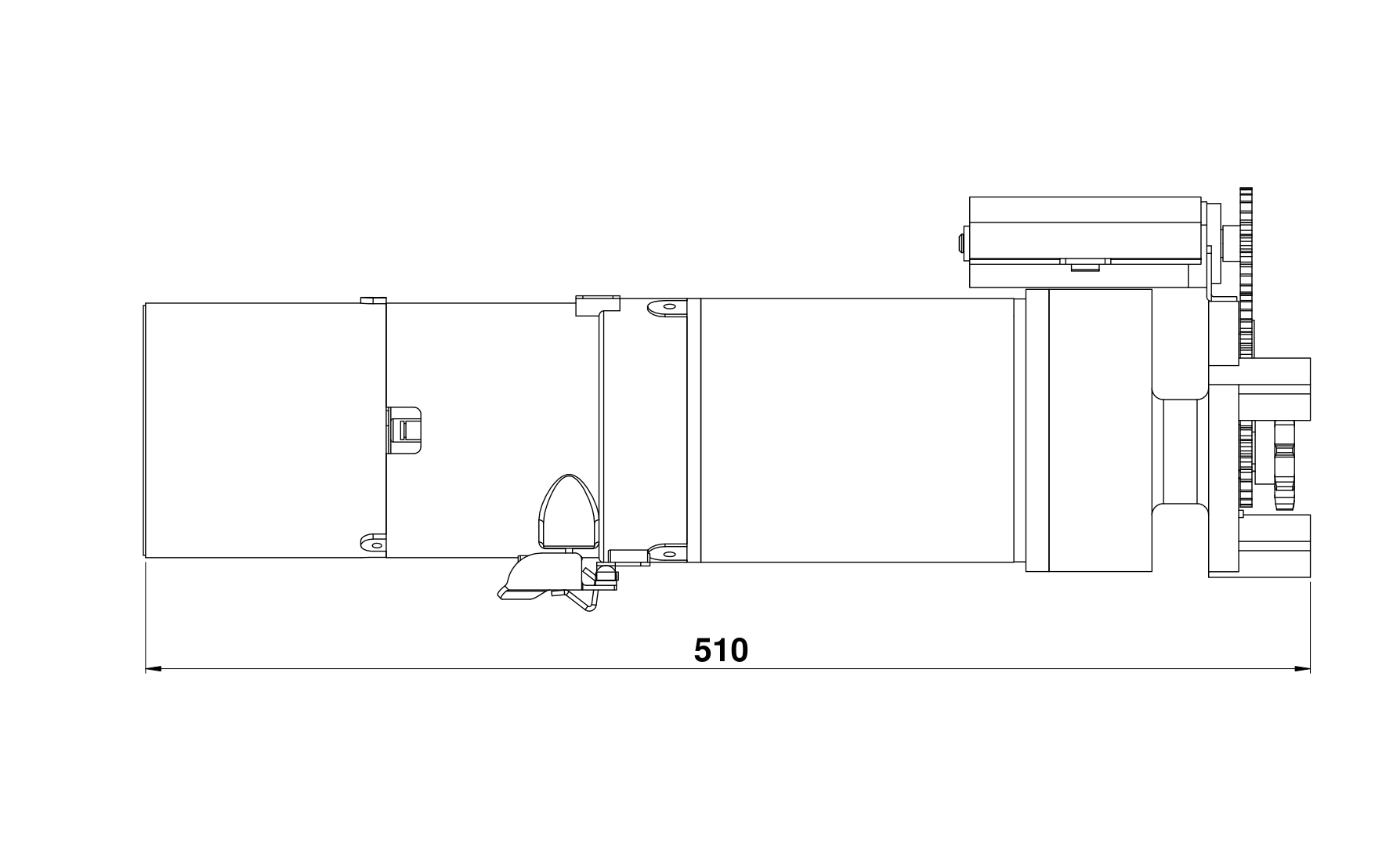

Overall dimensions
