Products›Shutter Motor›GP500 Driveway
GP500 Driveway

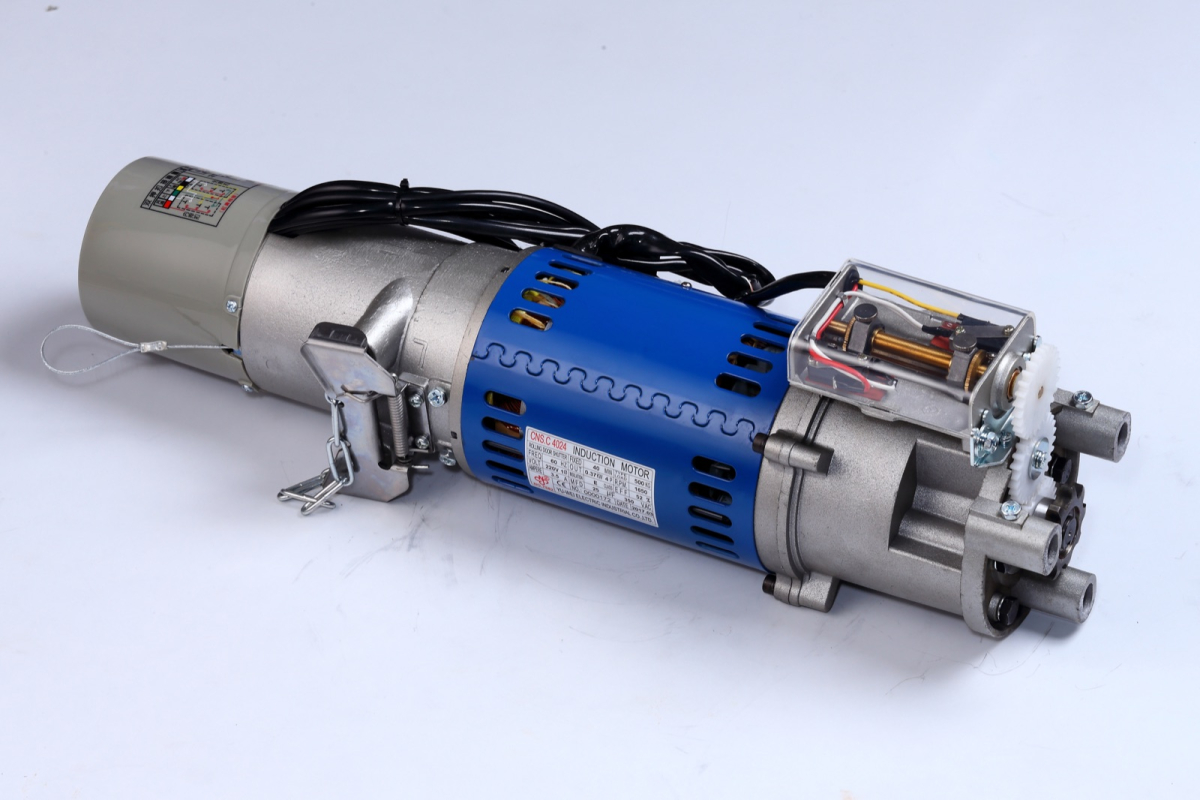

GP500 Driveway product photoGP500 Driveway product photo

GP500 Driveway

Driveway-dedicated with reinforced structure — durable and reliable

Applications: Parking driveways, basement exits, community controlled entries

Best for: Parking developers, community management, shutter installers

  • Run-capacitor motor design — shutter never freewheels in reverse
  • Among the smallest and lightest in class — easy to install
  • Light pull on the drop rod for smooth automatic descent
  • Auto-stop above 130°C; resumes at 70°C
Spec inquiry Distributors

Specifications

Power supplySingle-phase 110V / 220V
Power0.37 kW
Max load500 kg
Shaft size4 inch
Max door heightUp to 6 m
Unit weight15 kg
Not sure which model fits? See Complete Shutter Motor Buying Guide

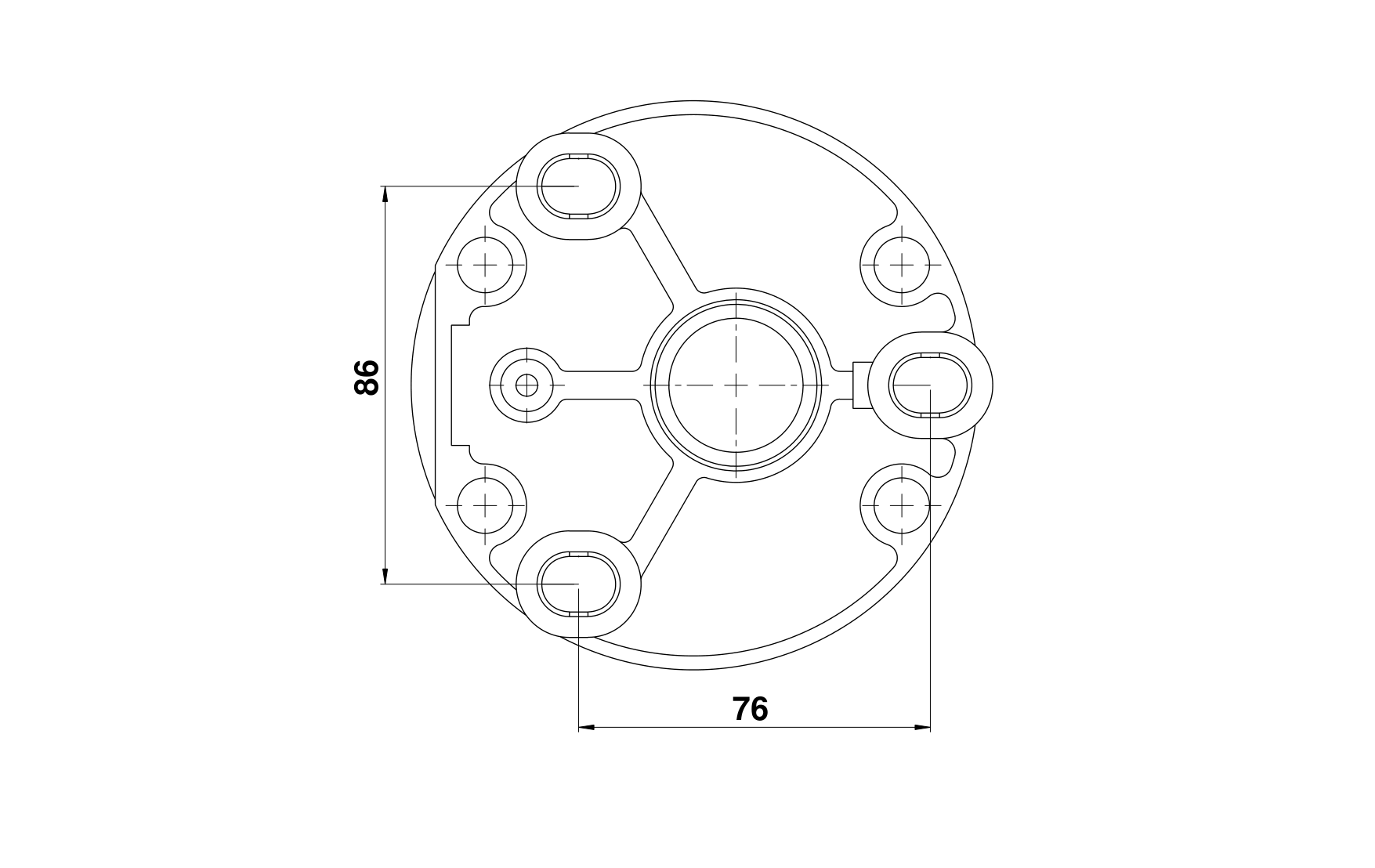

Dimensional drawings

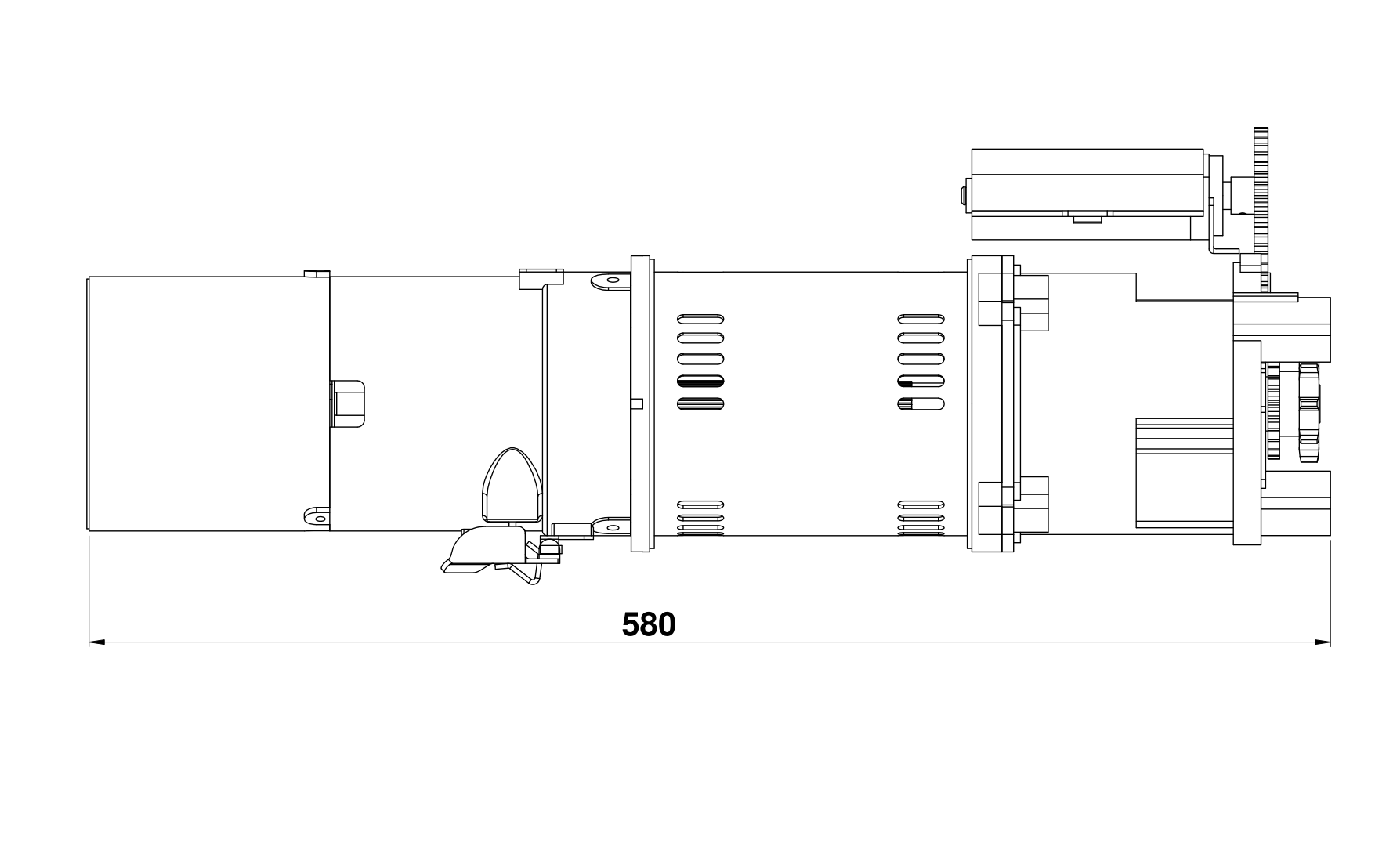

Overall dimensions
